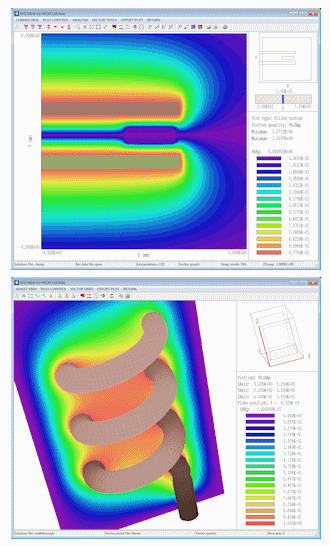

RFE3 screenshots

For more information
Download the RFE3 instruction manual: rfe3.pdf
Get information on Geometer: geometer.html
Get information on MetaMesh: metamesh.html
RFE3 (A3D0650)

Function
Three-dimensional RF electric fields in biological media and resistive materials

Description
RFE3 calculates RF electric fields in conductive dielectrics using high-accuracy finite-element methods. The package includes RFE3View, an interactive analysis program to find spatial variations of the amplitude and phase of electric fields and current. RFE3 has application to areas such as industrial RF treatments, geological measurements and biothermal procedures.

Features
Easy-to-understand instruction manual with walkthrough examples.
Export power-density profiles to HeatWave for thermal analyses.
Define spatial variations of relative dielectric constant and electrical conductivity from mathematical functions.
New solution techniques resolve microscopic details in large structures.
Automatic surface integrals to calculate mutual capacitance, resistance and net current.
Interactive line scans and plots with digital oscilloscope features.
Define up to 256 material regions with specified conductivity and relative dielectric constant.
Batch-mode operation for automated analyses.
The voltage amplitude and phase of electrodes may be set individually.
RFE2 is included at no extra charge.
One-time purchase price with no continuing license fees.

Please contact us for technical information, to arrange a free trial or to discuss how finite-element software can meet your goals.
