Input files
|
CapCalc.EIN, CapCalc.MIN, CapCalc.SCR
Download CapCalc.zip
|
|
Description
|
Calculation of the self-capacitance of a parallel plate capacitor (plate radius 10.0 cm, gap width 3.0 cm, quartz dielectric fills the gap (EpsiR = 4.2).
|
|
Results
|

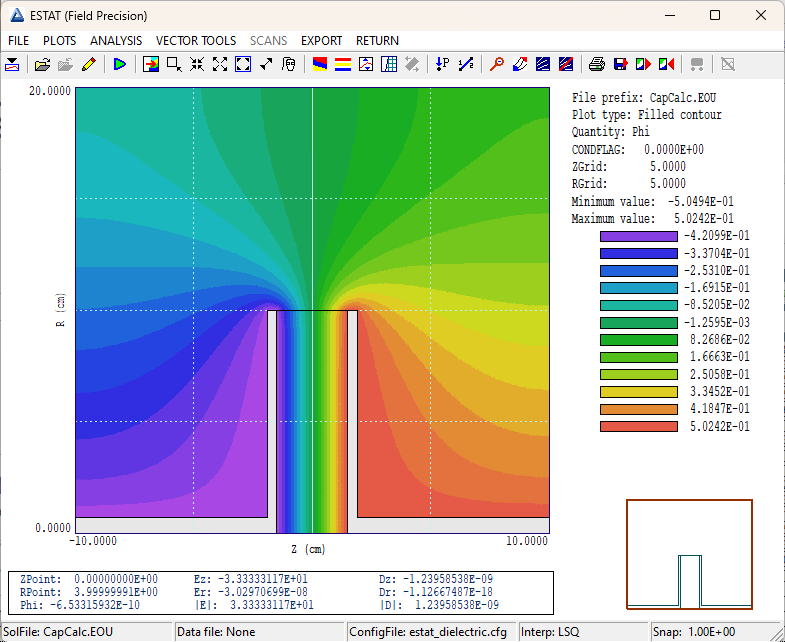

The code result was 43.3 pF. For comparison, the analytic value for ideal fields confined to the gap is 39.9 pF. In the numerical solution, 95% of the field energy was confined to the gap.
|
|
Comments
|
The geometry was based on a Comsol example for comparison.
|
